Trek® 152-1

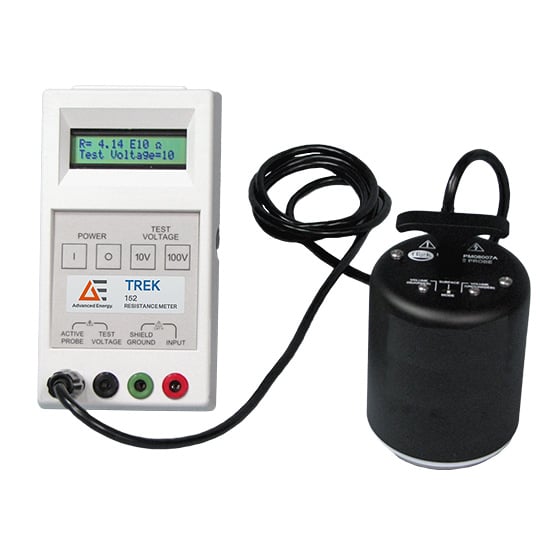

The Trek® 152-1 surface/volume resistance meter is designed to precisely measure surface or volume resistance on a wide variety of conductive, dissipative, and insulative materials. It features exceptional measurement accuracy and wide measurement ranges. When used with Advanced Energy’s uniquely-designed 152P-CR-1 concentric ring probe, the instrument provides consistent ease of operation even at very high resistance values. The Trek 152-1 is lightweight, portable and operable via batteries or an AC line power source with battery eliminator.

PRODUCT HIGHLIGHTS

• Complies to ANSI/ESD Association Standards
• Concentric ring probe pre-amplifier eliminates interference and enables reliable operation at high resistance values
• Exceptional accuracy, stability, and repeatability
• Wide measurement range (103 to 1013 Ω)
•  Elastomer electrodes for excellent surface contact
• Optional accessories include a Walking Test Adapter and Test Plate set
• NIST-traceable Certificate of Calibration provided with each unit
• CE compliant

APPLICATIONS

• Measuring surface or volume resistance on materials (Conductive, dissipative, insulative)
• Measuring in accordance with ANSI/ESD Standards for [Garments (STM2.1), Work surfaces (S4.1), Flooring (S7.1), Footwear (STM9.1), Planar materials (STM11.11),  Volume resistance (STM11.12 and IEC 61340-2-3), Seating (STM12.1), Two point resistance measurements (STM11.13), Floor materials/footwear (STM97.1)]
